MW-level Power Warehouse Module for MW-level and Above Energy Storage Station Needs

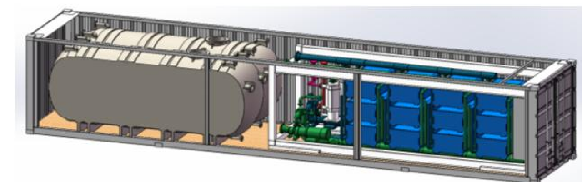

• 1MW/1MWh Power Warehouse: Includes power module (stack), stack cascade and interface system, electrolyte circulation system, and 1MWh positive and negative electrolyte storage tanks; standard stack interface;

• 2MWh Capacity Warehouse: 2MWh capacity warehouse, standard interface system; used for capacity expansion;

• Main application scenarios: Used for standardized and rapid construction of MW-level and above energy storage stations;

Product Features

• Uses mature structure and well-supported and complete container as the module shell;

• Can be stacked 5 to 6 layers, and reinforced with mature container system fasteners;

• External interfaces include electrolyte circulation system interface, electrical interface, external power supply interface, and standard communication interface;

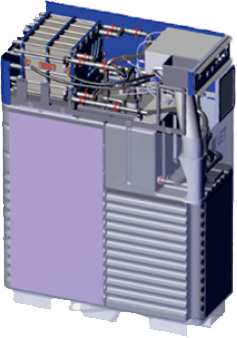

6KW/30KWh Stack

Completed joint project validation with State Power Investment Corporation and China Tower, achieving over 8 months of standard operation;

Received large intention orders from the communications industry.

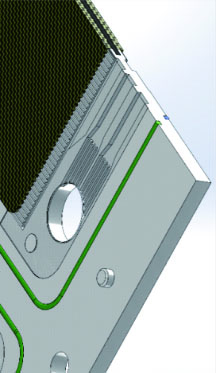

60KW Stack

Core component of large-scale energy storage equipment;

100% isolation of positive and negative electrodes, no self-discharge, upgradable to second-generation metal electrode plates;

Rated power 60KW, DC-side efficiency 88.1%;

Industry-leading comprehensive performance indicators, lowest cost in the industry.

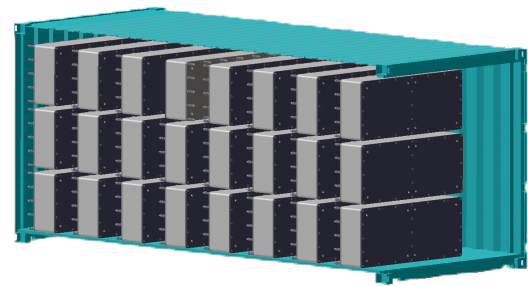

Megawatt Power/Capacity Module

Includes 1MW/1MWh power module, 2MWh capacity module, standard interface system;

Uses container as module shell, high integration, low cost;

Can be stacked 5-6 layers, space-efficient.
